Charcoal powder extruder machine shaping hexagonal prism cube round column
Raw material: Coal, charcoal, carbonized biomass/wood/bamboo
Key words: Charcoal extruder/charcoal shaping machine
Machine color: Gray, green, yellow and others as customers` demand
Function: Shaping charcoal
Power: electric motor(11KW, 15KW, 18KW/22KW)
Mold shapes: Cube, round cloumn, hexagonal prism, diamond, flower and other special shapes

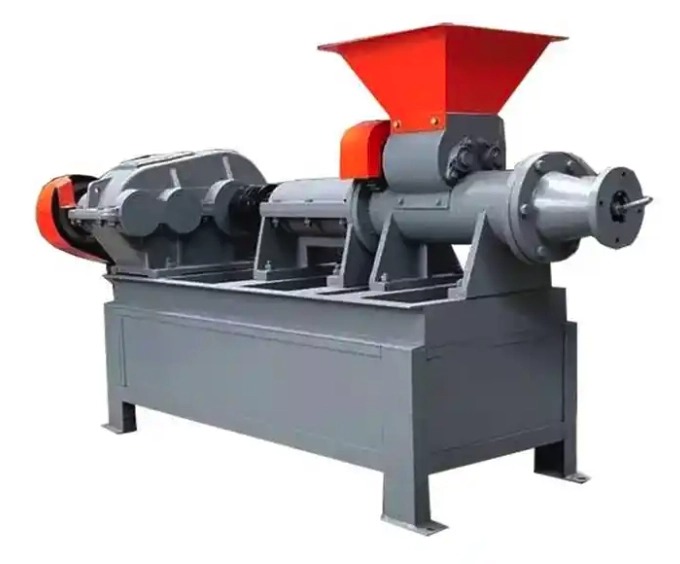

Charcoal Shaping/Extruder Machine Introduction
A charcoal shaping/extruder machine, also known as a charcoal briquette machine, is an industrial tool used to compress loose charcoal dust or powder into various shapes, most commonly logs or briquettes. This process enhances the usability and burning efficiency of charcoal, making it a valuable tool for charcoal producers and consumers alike.
Technical Parameter of charcoal extruder/shaping machine
| Model | Power(KW) | Capacity(KGS per hour) | Dimension(MM) | Weight(T) |
| 160 | 11KW | 300-500 | 1950*1100*1180 | 0.7 |
| 160B | 15KW/18KW | 500-800 | 2000*1300*1120 | 1 |
| 180 | 22KW | 1000-1500 | 2320*1580*890 | 1.2 |
Working principle:
The machine operates based on the principle of screw extrusion. Here's a breakdown of the typical
process:
Feeding: Crushed and processed charcoal dust is fed into the machine's hopper.
Mixing and Binding: Inside the machine, the dust may be mixed with binders like starch or clay to improve the
cohesiveness of the final product.
Extrusion:
A screw mechanism applies pressure, forcing the charcoal mixture through a mold at the machine's end.
This mold determines the final shape of the briquettes: Cube, round cloumn, hexagonal prism, diamond, flower and other special shapes for options and customization
Related ware parts and other euqipment
Crusher machine and mixer machine
